It’s the scenario that gives every IT manager nightmares. A critical network service goes down, your senior network admin is on vacation, and the rest of the team is staring at a rack of blinking lights with no idea how anything is connected.
This is the chaotic, high-stress reality of an undocumented network. Troubleshooting becomes guesswork, security audits are a scramble, and onboarding a new team member takes months instead of weeks.
But it doesn’t have to be this way.
Proper network documentation is the single most effective tool for transforming chaos into clarity. It’s the blueprint for your entire IT infrastructure, enabling faster resolutions, tighter security, and a more resilient team. This guide will walk you through the essential steps to create comprehensive network documentation that your team will actually use.
Why Bother? The Immediate Benefits of Network Documentation
Before we dive into the “how,” let’s be clear on the “why.” Investing time in documentation pays huge dividends:
- Lightning-Fast Troubleshooting: When you know exactly how data flows and what devices are connected, you can pinpoint the source of an outage in minutes, not hours.
- Enhanced Security: Clear documentation of firewall rules, VLANs, and access points exposes potential vulnerabilities before they can be exploited.
- Simplified Onboarding: A new hire can get up to speed on your network architecture in days instead of months, reducing the knowledge-hoarding problem described in this post.
- Stress-Free Compliance: When auditors ask for network diagrams or firewall policies, you can provide them instantly instead of scrambling to create them from scratch.
Step 1: Document the Physical Layer
This is the tangible hardware—the things you can see and touch. The goal is to create a complete inventory and map of every physical device on your network.
- Create a Physical Network Diagram: Use a tool like Microsoft Visio, Draw.io, or Lucidchart to map out your server rooms and network closets. The diagram should show the location of server racks, switches, routers, firewalls, patch panels, and wireless access points.
- Build a Hardware Inventory: You need a detailed list of every piece of network equipment. This is a perfect use case for the IT Asset Management Log template. For each device, record the:
- Device Type (e.g., Switch, Router)
- Manufacturer & Model
- Serial Number
- Physical Location (e.g., Rack U-23, IDF Closet 2)
- Purchase Date & Warranty Expiration

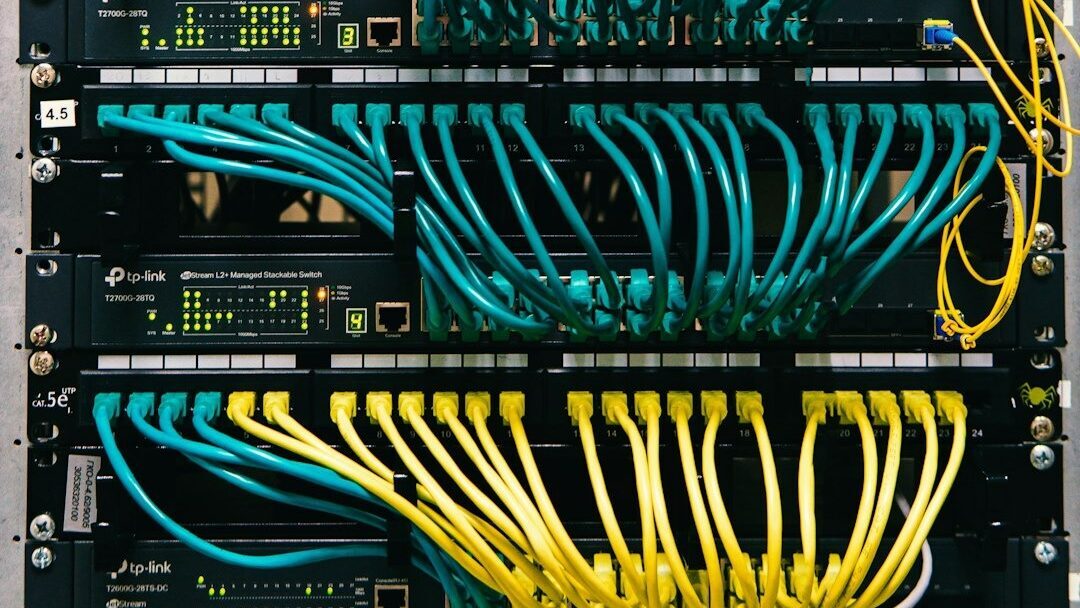

- Document Your Cabling: Label every cable at both ends. Create a cabling spreadsheet that documents every connection on your patch panels—for example, Port 01 on Patch Panel A connects to Port 12 on Switch-01.
Step 2: Document the Logical Layer
If the physical layer is the “hardware,” the logical layer is the “software” that controls how information flows across it. This documentation is critical for understanding traffic and security.
- Create a Logical Network Diagram: This diagram is less about physical location and more about data flow. It should visually represent your IP addressing schemes, subnets, VLANs, and routing topology. It shows how different parts of your network talk to each other.
- IP Address Management (IPAM): In a spreadsheet or dedicated IPAM tool, document your entire IP space. This includes:
- All subnets and their purposes (e.g., Servers, VoIP, Guest Wi-Fi).
- Statically assigned IP addresses and the devices using them.
- DHCP scopes, ranges, and any reservations.
- Firewall Rules & ACLs: This is a critical security document. For every rule on your firewalls and routers, document the source, destination, port, action (permit/deny), and, most importantly, the business reason for the rule.
- VLAN Configuration: List all configured VLANs with their ID, Name, and the IP subnet they are associated with.
Step 3: Document Configurations and Credentials
This layer contains the specific settings and secrets that make your network run.
- Device Configurations: Regularly back up the running configuration files for all your switches, routers, firewalls, and other manageable devices. Store these in a version-controlled repository.
- Credentials: All administrative credentials (usernames, passwords, SSH keys) must be documented. CRITICAL: Do NOT store these in a plain text file. Use a dedicated, encrypted password manager built for teams (like Bitwarden, 1Password, or KeePass).
- Software & Firmware Versions: Keep a simple list of all your network devices and the current version of their operating system or firmware. This is vital for managing patches and security updates.
Step 4: Make Time for This by Offloading Other Documentation
As you can see, creating and maintaining proper network documentation is a massive but non-negotiable task. The single biggest reason it doesn’t get done isn’t lack of skill—it’s lack of time.
Every IT team has a finite “documentation budget” of hours they can spend writing guides. While you’re spending time creating the critical network diagrams and firewall rule-sets we’ve just discussed, who is handling the endless stream of requests for guides on how to use Microsoft Teams, Zoom, or Slack?
For most teams, this user-facing documentation either doesn’t get done, or it consumes the very hours needed for essential infrastructure projects. You’re forced to choose between documenting your core systems and supporting your users’ apps.
This is where you need to be strategic. The smartest IT teams don’t try to do everything; they offload what they can.
A managed knowledge base like Kandbe can handle the user-facing documentation for common business software. It’s a library of professional, user-friendly guides that you don’t have to write, edit, screenshot, or maintain. When a vendor updates their UI, we update the guide.
By taking that entire category of work off your plate, Kandbe frees up hundreds of hours. It gives your team the breathing room to focus on high-value, internal-only documentation—like the crucial network maps and configuration files that keep your business running.
Conclusion: Document What Matters Most
Proper network documentation is the foundation of a stable, secure, and efficient IT department. This critical work requires significant time and focus.
The only way to create that time is to stop wasting it on repetitive, low-impact tasks. By letting Kandbe manage your user-facing software guides, you reclaim the hours your team needs to properly document, manage, and improve the core infrastructure that truly drives your business forward.
